Description

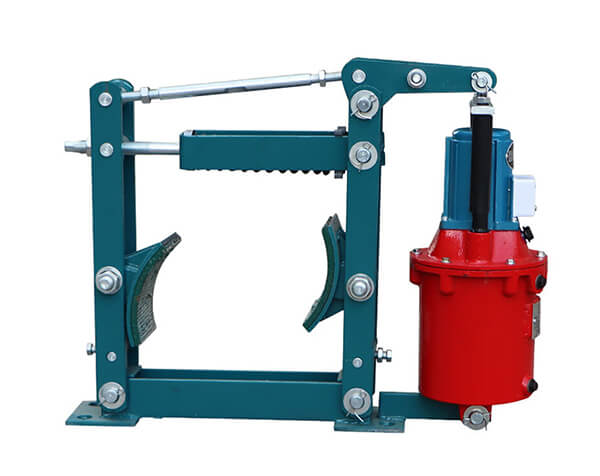

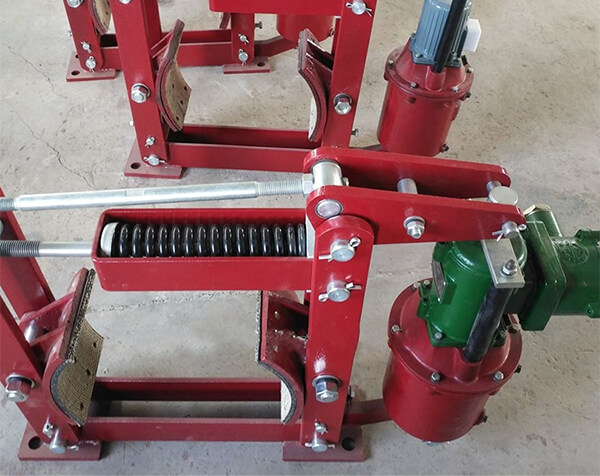

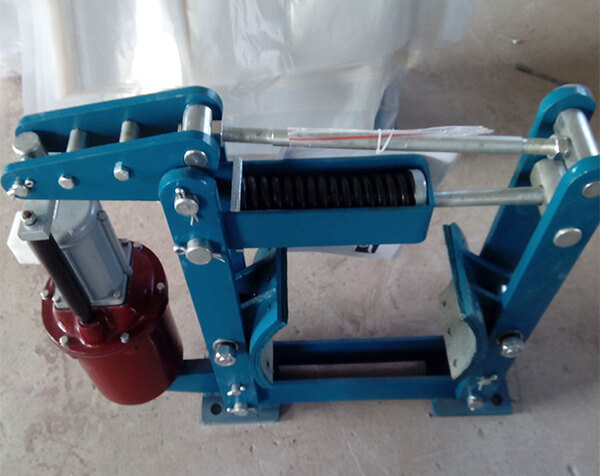

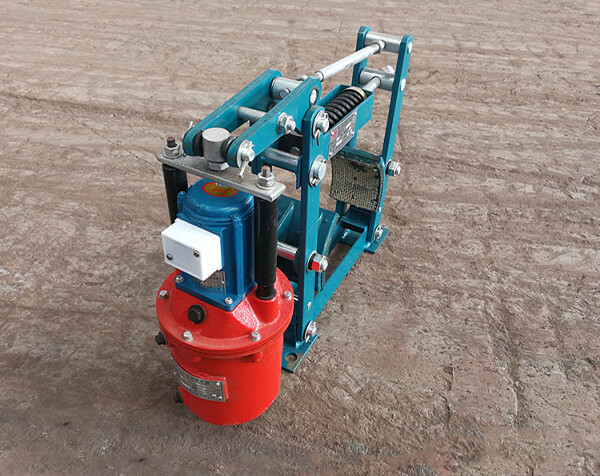

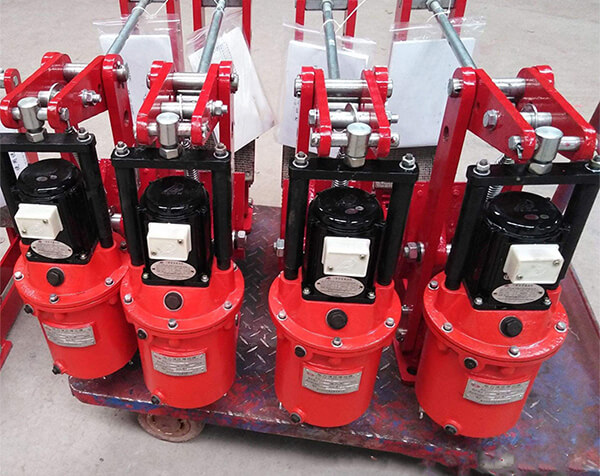

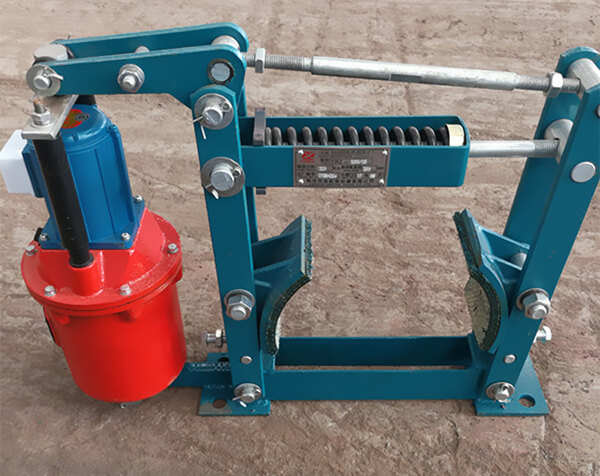

For the crane lifting operation, the braking device is mainly to avoid the fall of the boom and the lifting object, to avoid the crane and the turntable to slide due to the component force and wind force of the ramp, to avoid the deceleration of the mechanism in operation, and finally stop moving.
Features
The main swing hinge points are equipped with self-lubricating bearings for transmission and do not require lubrication during use;
Technical Data
|
Type |
D |
Braking torque (KN·m) |
A |
b |
D |
D1 |
d |
E |
F |
Weight（kg） |
|
160/18 |
160 |
80-140 |
345 |
65 |
160 |
137 |
14 |
157 |
90 |
25 |
|
160/25 |
112-180 |
354 |
154 |
37 |
||||||
|
200/18 |
200 |
100-125 |
346 |
80 |
200 |
137 |
14 |
190 |
90 |
28 |
|
200/25 |
112-225 |
379 |
154 |
43 |
||||||
|
250/25 |
250 |
140-225 |
408 |
100 |
250 |
154 |
18 |
220 |
100 |
58 |
|
315/45 |
250-400 |
420 |
178 |
70 |
||||||
|
315/25 |
315 |
180-280 |
440 |
125 |
315 |
154 |
18 |
247 |
110 |
74 |
|
315/45 |
315-630 |
522 |
178 |
78 |
||||||
|
315/90 |
630-1250 |
538 |
210 |
147 |
Applications
Widely used in industries such as lifting and transportation, port machinery, metallurgical machinery, railway machinery, hydraulic machinery, mining machinery, etc
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
