Description
It is primarily used to carry cables, smoothly releasing them through rotation, thus greatly improving construction efficiency and reducing cable damage during the release process. The design of a cable reel typically considers various factors such as cable specifications, weight, and the construction environment to ensure it meets the needs of different scenarios.
Features

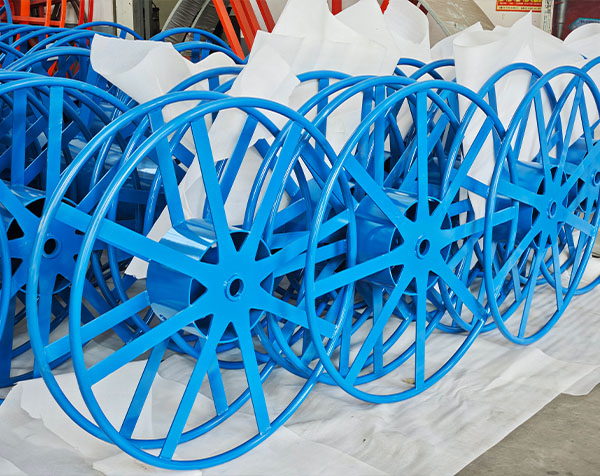

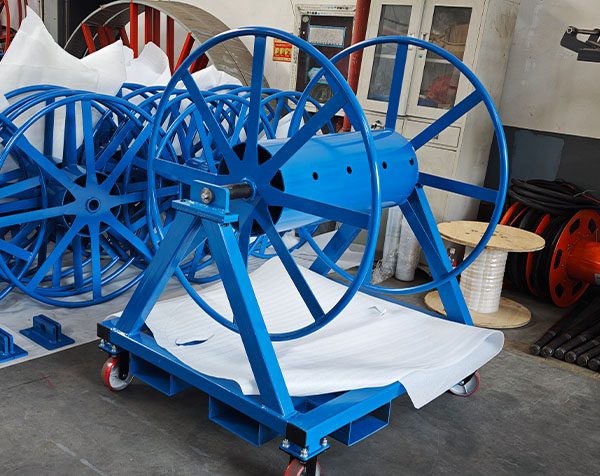

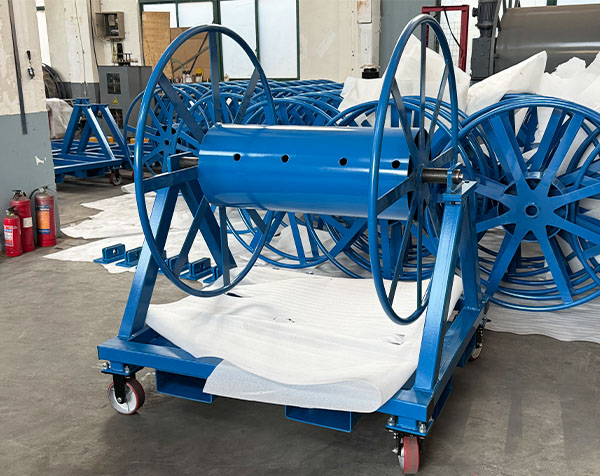

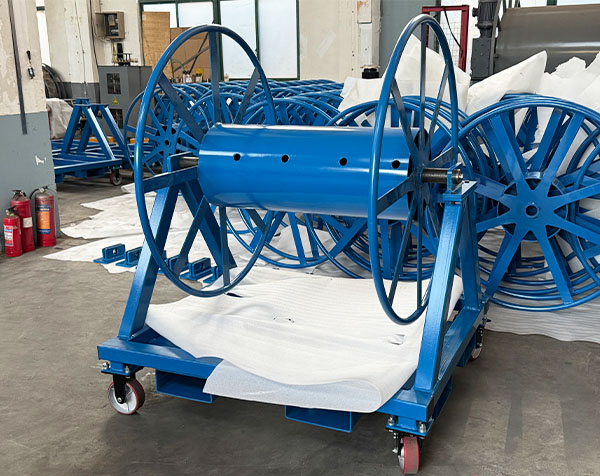

1. Cable drum mainly consists of a reel body, a shaft, and a support structure. The reel body is usually circular to provide sufficient space for winding the cable. The shaft is the core of the reel;
2. It bears the weight of the cable and releases it through rotation. The support structure is used to fix the reel, ensuring its stability during construction.
Technical Data
|
Cable specifications and outer diameter (mm) / cable length (m) / reel weight (kg) / reel size (mm) |
H |
Inner diameter D |
1800 |
2200 |
2600 |
3000 |
3400 |
3800 |
4200 |
|
CFR(14*1.5).∅25.9 |
32 |
900 |
75/184 |
128/224 |
191/264 |
265/304 |
|
|
|
|
CFR(24*1.5),∅32.6 |
40 |
|
58/190 |
100/230 |
150/270 |
208/310 |
276/350 |
|
|
|
YCW(3*70+1*25).∅51 |
64 |
1200 |
|
60/300 |
87/340 |
118/380 |
153/420 |
193/460 |
|
|
YGF(3*35+1*16),∅52 |
|
||||||||
|
YCM(3*120+1*35),∅60 |
74 |
|
|
51/310 |
74/350 |
101/390 |
132/430 |
165/470 |
|
|
GBF(3*35+1*16),40*60 |
|
80/310 |
115/350 |
156/390 |
202/430 |
254/470 |
|||
Applications
Cable drum (also known as wire reels or cable spools) are widely used in industrial fields, primarily for winding and managing wires and cables to provide mobile power (such as on construction sites and in outdoor work environments). Their core function is to facilitate the transport, organization, and storage of various wires, while also providing safety protection and portability.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
