Description

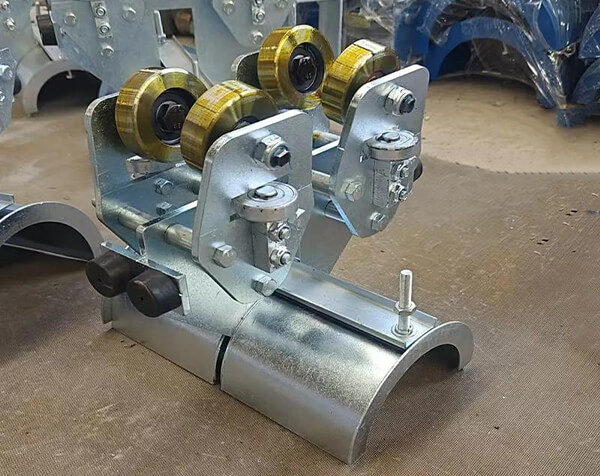

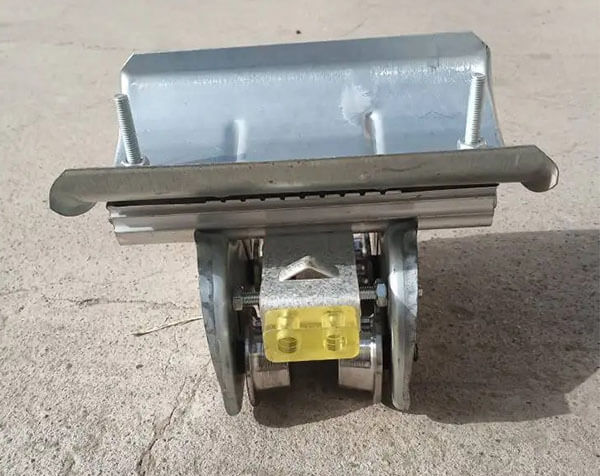

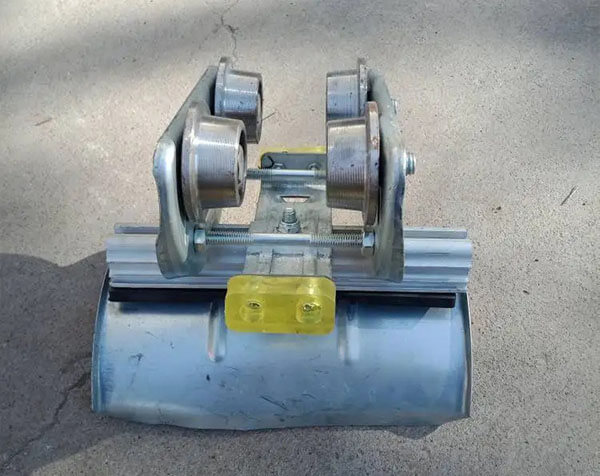

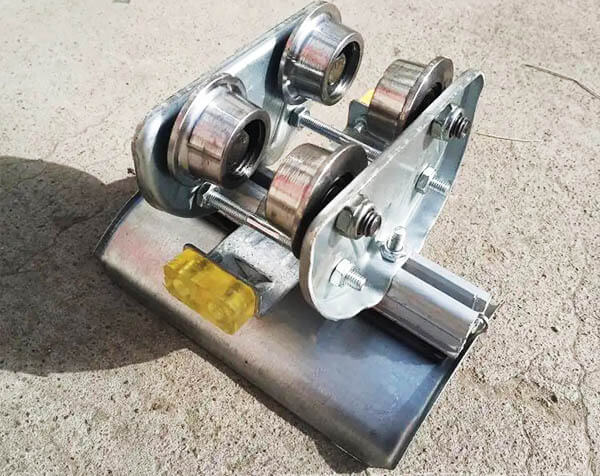

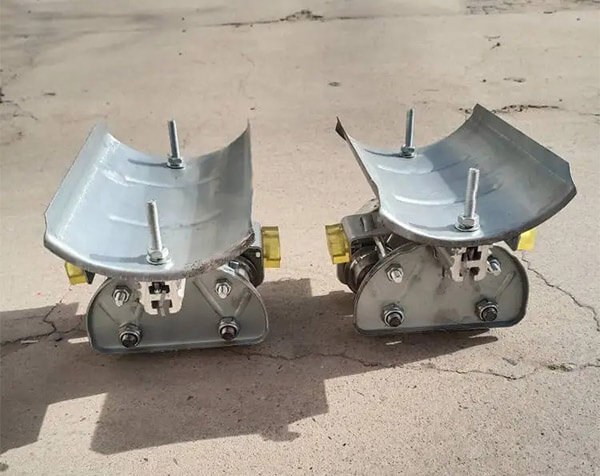

Cable pulley (also known as cable drag chain pulley, cable trolley) is a guiding and protective device for flexible lines such as cables, air pipes or hydraulic pipes. Its core function is to pull cables in an orderly manner during the movement of the equipment to prevent entanglement, wear or breakage. It is suitable for rail-mounted mobile equipment (such as cranes, automated machinery, stage equipment, etc.).
Features
The pulley bearing adopts a sealed design. It supports high-speed and high-frequency reciprocating motion. The modular design supports horizontal, vertical or curved track layout.
Technical Data
| Model | A | a | B | H | L | 1 | R | Weight kg |
| GHD-1 | 170 | 72 | 195 | 110 | 145 | 110 | 50 | 2.84 |
| GHD- | 240 | 135 | 245 | 120 | 220 | 135 | 60 | 5.88 |
| GHD- | 240 | 135 | 285 | 130 | 260 | 180 | 80 | 7.09 |
| GHD-IV | 320 | 200 | 315 | 130 | 300 | 200 | 95 | 7.33 |
| GHD-V | 420 | 200 | 350 | 150 | 360 | 260 | 120 | 8.35 |
Applications
It is widely used in the energy chain system of rail cranes, gantry cranes, shore container cranes and other lifting machinery and equipments
