Description

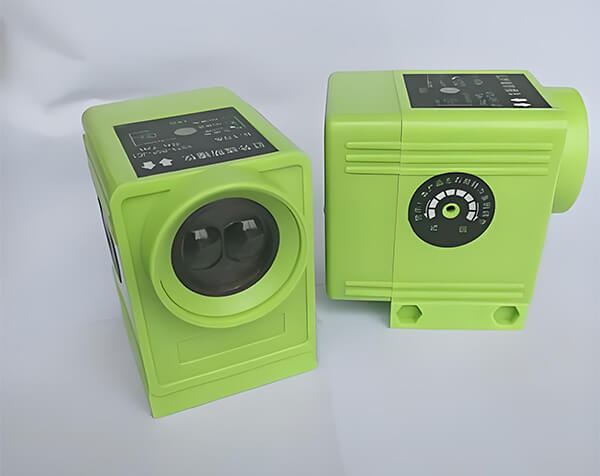

The infrared anti-collision device works based on the emission and reflection principle of infrared beams:
Emission and reception: The device has a built-in infrared transmitter and receiver. The transmitter continuously emits infrared beams and the receiver monitors the reflected signal.
Obstacle detection: When the beam is blocked or reflected by an obstacle, the sensor measures the distance of the obstacle by calculating the round-trip time of the beam or the degree of signal attenuation.
Intelligent response: When a dangerous distance is detected, the device can trigger an audible and visual alarm, decelerate and brake, or directly cut off the power supply to avoid collision.
Features
1.Real-time monitoring + active braking can reduce the collision accident rate by more than 80% (measured data from a certain port).
2.Dual protection of sound and light warning and forced shutdown reduces the risk of human operation errors.
3.Efficiency optimization:
Avoid equipment shutdown caused by collision, and improve operating efficiency by 15%-30%.
Extend the service life of the crane and reduce maintenance costs
Technical Data
| Working voltage | AC110V/AC200-240V (special voltage can be customized) | Power frequency | 50Hz~60Hz |
| Alarm volume | 80dB | Response time | 0.5s |
| Detection distance | Level I: 5-20m adjustable | power | AE401A:≤10W |
| Level II: 3-12m adjustable | AE401C:≤20W | ||
| Output contact | AE401A:0.5A 125VAC/ 1A 30VDC | ||
| Load (resistive) | AE401C:12A 125VAC/ 7A 250VAC/ 7A 30VDC | ||
| Working temperature | -30˚C ~ +70˚C | Protection level | AE401A:IP65 |
| AE401C:Indoor | |||
| Working humidity | 10% ~ 95% (No condensation) | Installation method | Screw-on installation |
Applications

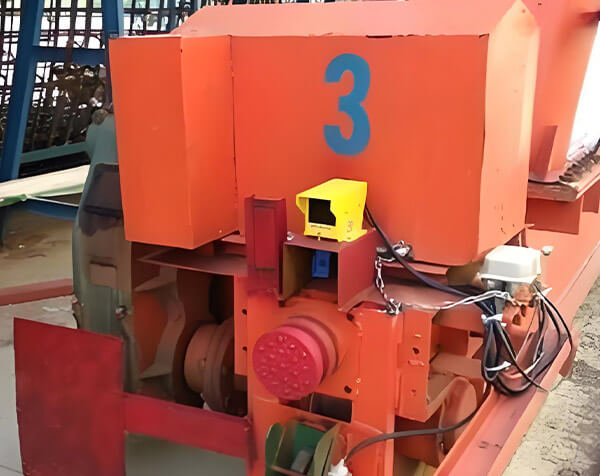

Infrared anti-collision devices are often used in overhead cranes, gantry cranes, tower cranes and other lifting equipment, as well as container terminals, steel mills, construction sites and other places.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
