Description

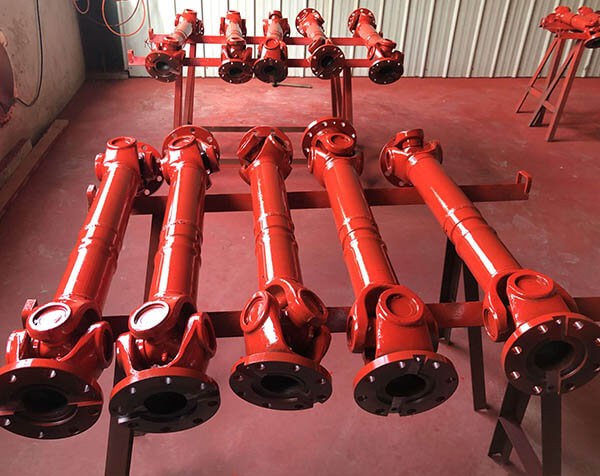

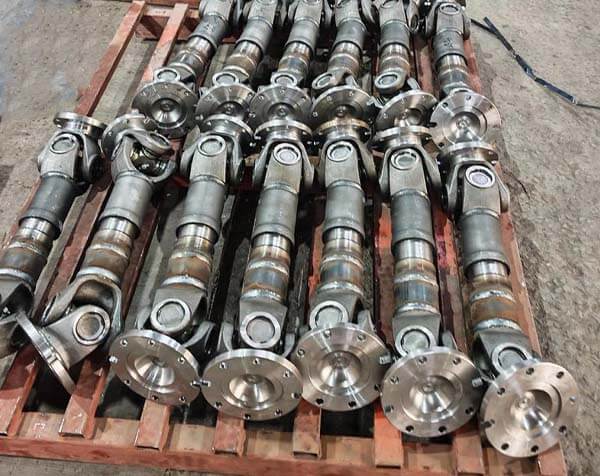

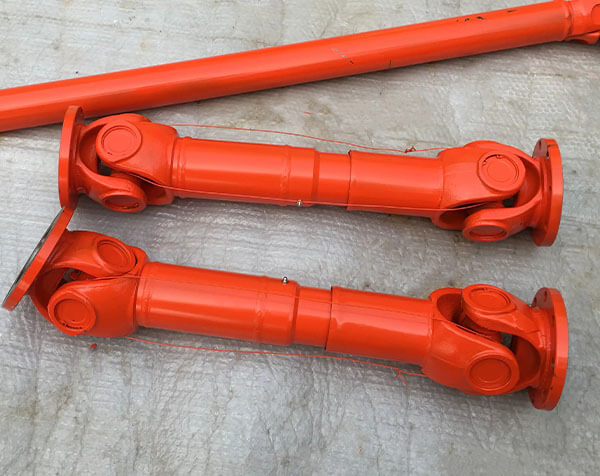

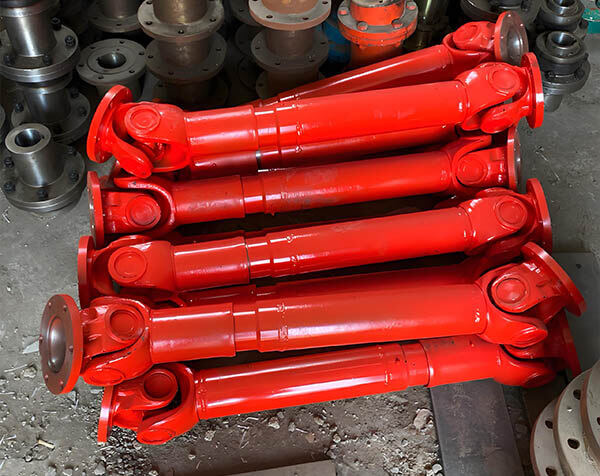

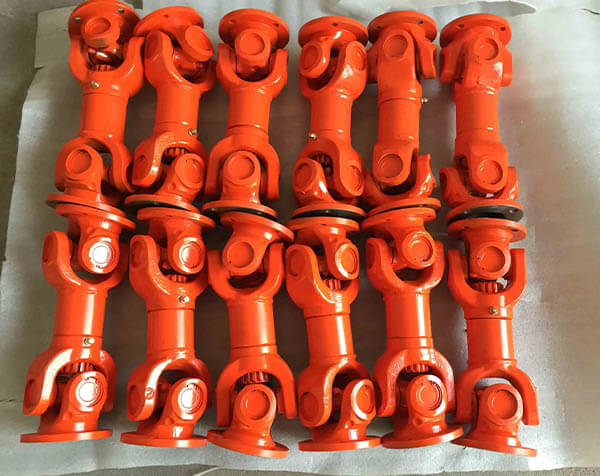

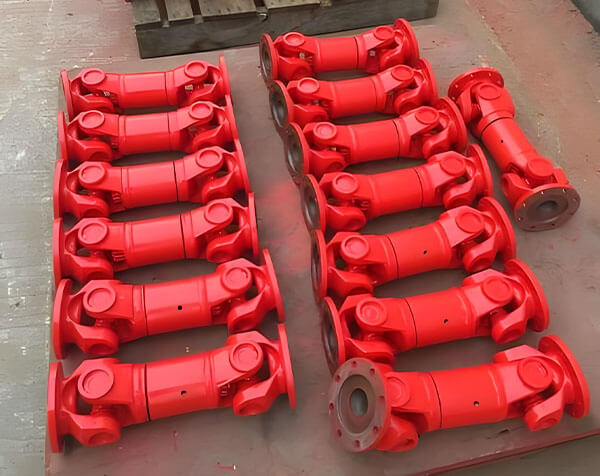

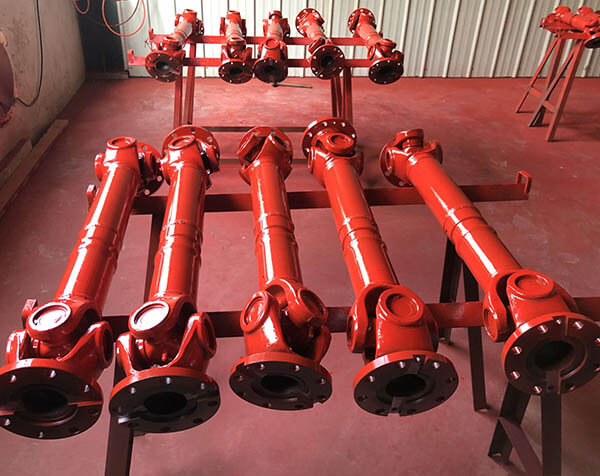

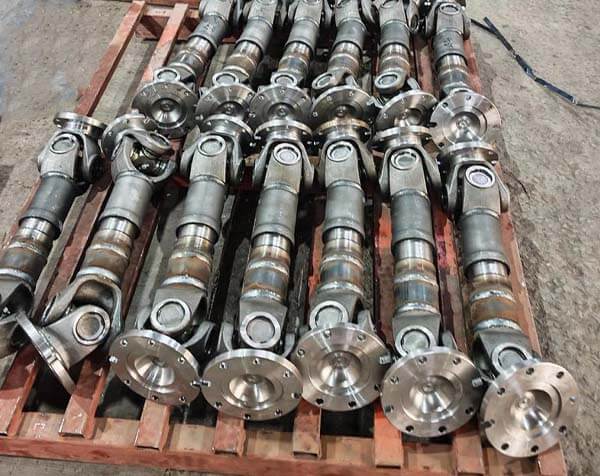

The universal joint coupling is a flexible double driven coupling used to compensate for misalignment of the main suspension in the bogie while fully transmitting the torque between the gearbox and the drive wheelset. It allows very large axle misalignment values and tolerates considerable axle and gearbox misalignment while generating only low restoring forces.
Features
Its structure has a large angular compensation capability, compact structure, high transmission efficiency. Especially under the correct technical control conditions, it can also obtain a very long service life. Therefore, it has been increasingly adopted by various machines.
Technical Data
| Model | Rotating diameter D mm | Revolution torque Tn (KN:m) | Fatigue torque Tf (KN.m) | Size (mm) | Moment of inertia 1 (kg÷m) | Weight G (kg) | ||||||||||||
| Axis Fold angle ≥P Lmin | Dt (js11) | D (H7) | D3 | Lm | n-d | k | t | B (h9） | B | Lmin | 100mm | Lmin | 100mm | |||||
| SWC180WF | 180 | 12.5 | 6.3 | 25° | 560 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5.5 | 0.2480 | 0.0070 | 58 | 2.8 | ||
| SWC225WF | 225 | 40 | 20 | 15 | 610 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9.0 | 0.636 | 0.0234 | 93 | 4.9 |
| SWC250WF | 250 | 63 | 31.5 | 15 | 715 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 1.325 | 0.0277 | 143 | 5.3 |
| SWC285WF | 285 | 90 | 45 | 15° | 810 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15.0 | 2.664 | 0.0510 | 222 | 6.3 |
| SWO315WF | 315 | 125 | 63 | 15° | 915 | 284 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15.0 | 4.469 | 0.0795 | 300 | 8.0 |
| SWC350WF | 350 | 180 | 90 | 15° | 980 | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16.0 | 7.388 | 0.2219 | 412 | 15.0 |
| SWC390WF | 390 | 250 | 125 | 15° | 1100 | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18.0 | 13.184 | 0.2219 | 588 | 15.0 |
| SWC440WF | 440 | 355 | 180 | 15 | 1290 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20.0 | 23.250 | 0.4744 | 880 | 21.7 |
| SWC490WF | 490 | 500 | 250 | 15² | 1360 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.0 | 40.750 | 0.4744 | 1173 | 21.7 |
| SWC550WF | 550 | 710 | 355 | 15 | 1510 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12.0 | 100 | 22.5 | 68,480 | 1.3570 | 1663 | 34.0 |
| SWC620WF | 620 | 1000 | 500 | 15° | 1690 | 555 | 380 | 426 | 340 | 16-38 | 55 | 12 | 100 | 25.0 | 27.53 | 1.3570 | ||
Applications
The universal joint is widely used in a wide range of industries, such as: lithium battery industry, automation industry, furniture woodworking industry, packaging and printing industry, etc
