Description

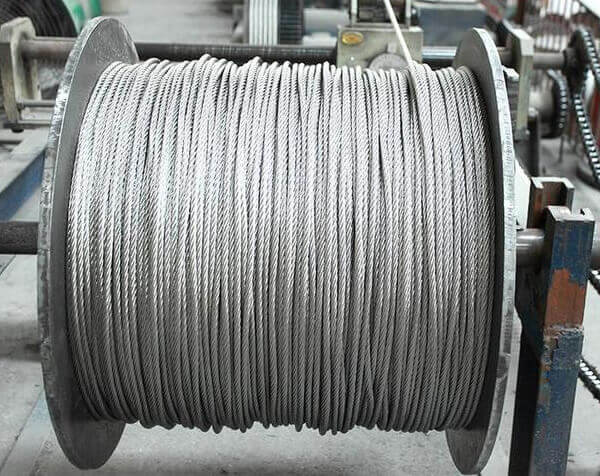

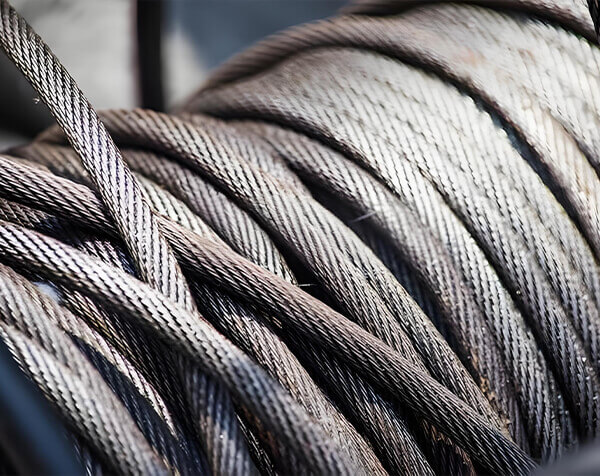

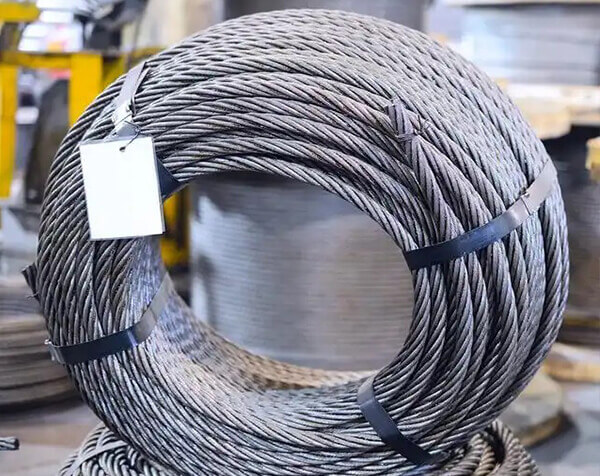

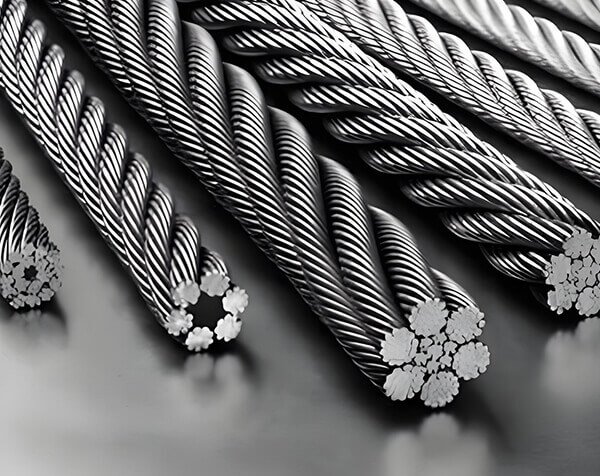

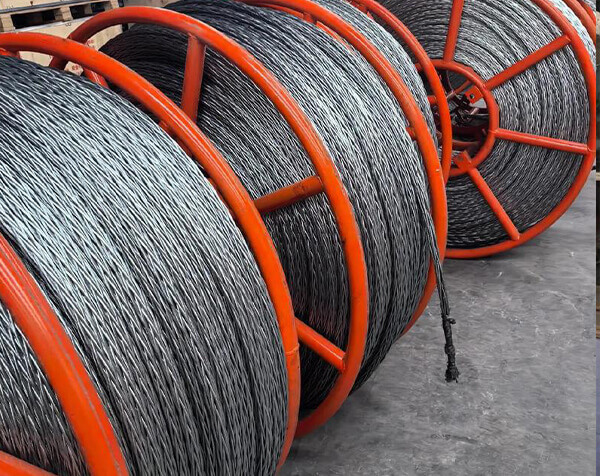

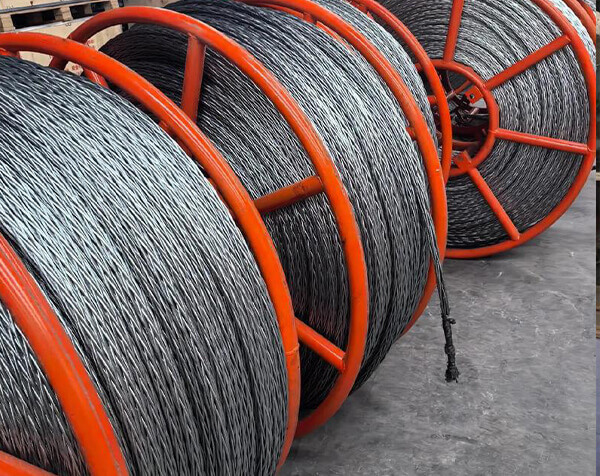

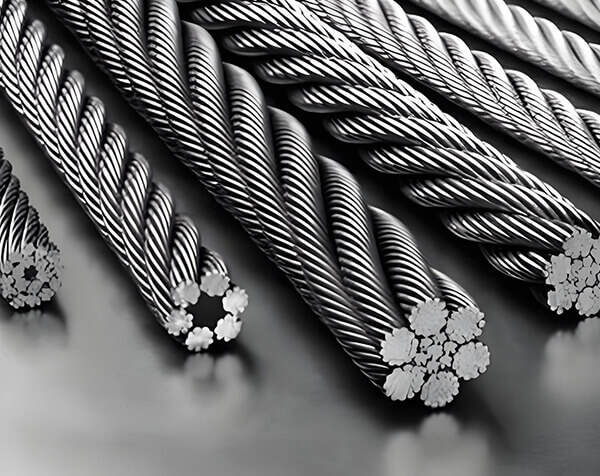

Steel wire rope is a rope made of several steel wires twisted together. The quality of the material determines the performance and quality of the entire rope. At present, the main materials are ordinary alloy steel and high-strength alloy steel. When ordinary alloy steel cannot meet the needs of some extreme environments, the use of high-strength alloy steel becomes a necessary choice. Since steel wire rope is made of multiple steel wires twisted together, its strength is very high and can withstand large loads.
Features
1.High strength: The wire rope can withstand large tension and is suitable for high-load operations such as lifting and traction.
2.Wear resistance: The surface hardness of the wire rope is high, wear-resistant and has a long service life.
3.Corrosion resistance: Galvanized wire rope has good corrosion resistance and can be used in harsh environments.
4.Flexibility: The wire rope has a certain flexibility and is easy to bend and operate.
5.Safety: Due to the structure and material characteristics of the wire rope, it has a high safety.
Technical Data
| Wire rope MM | Total cross-sectional area of steel wire ( mm) | Weight(kg/100m | Total breaking force of steel wire=nominal tensile strength (1870Mpa) * total cross-sectional area of steel wire (mm ²)Breaking force of steel wire=total breaking force of steel wire * conversion coefficient (0.82) Safety load capacity of steel wire rope=Steel wire breaking force/Safe load factor (4.0) | ||||
| (mm) | Total breaking force of steel wire (t) | Breaking force of steel wire (t) | Safe load capacity of steel wire rope (t) | ||||
| 8.7 | 0.4 | 27.88 | 26.21 | 5.32 | 4.36 | 1.09 | |
| 11.0 | 0.5 | 43.57 | 40.95 | 8.31 | 6.82 | 1.70 | |
| 13.0 | 0.6 | 62.74 | 58.97 | 11.97 | 9.82 | 2.45 | |
| 15.0 | 0.7 | 85.39 | 80.27 | 16.29 | 13.36 | 3.34 | |
| 17.5 | 0.8 | 111.53 | 104.84 | 21.28 | 17.45 | 4.36 | |
| 19.5 | 0.9 | 141.16 | 132.69 | 26.94 | 22.09 | 5.52 | |
| 21.5 | 1.0 | 174.27 | 163.81 | 33.25 | 27.27 | 6.82 | |
| 24.0 | 1.1 | 210.87 | 198.21 | 40.24 | 32.99 | 8.25 | |
| 26.0 | 1.2 | 250.95 | 235.89 | 47.89 | 39.27 | 9.82 | |
| 28.0 | 1.3 | 294.52 | 276.84 | 56.20 | 46.08 | 11.52 | |
| 30.0 | 1.4 | 341.57 | 321.07 | 65.18 | 53.45 | 13.36 | |
Applications
The wire rope on the crane has the advantages of high strength, good flexibility, light weight, stable operation, and very few sudden breaks, so it is widely used in the lifting mechanism of the crane, the traction mechanism, and the rotating mechanism. It is also used as a rope for tying objects, a tensioning rope for mast cranes, a carrying rope for cable cranes and overhead airways, etc
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
