Description

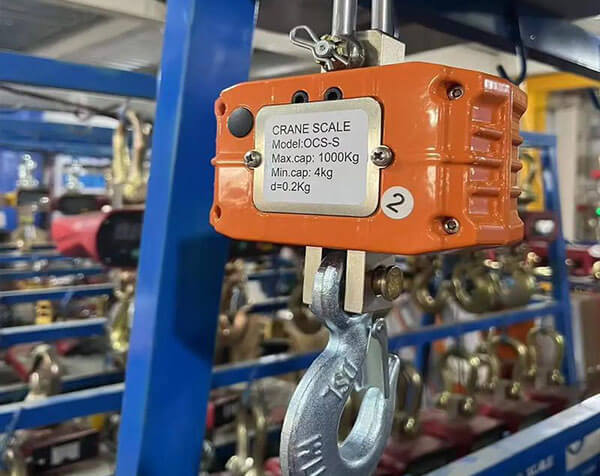

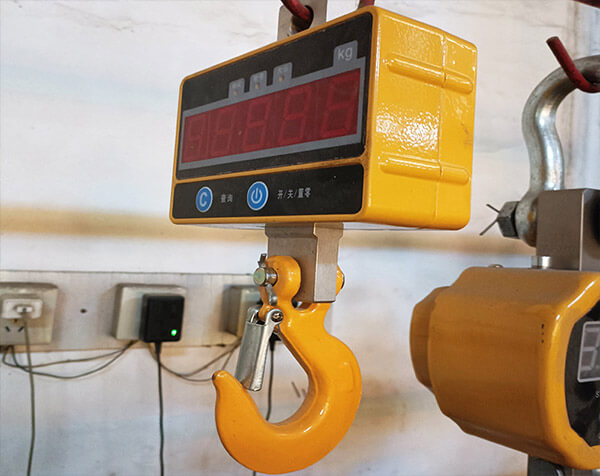

Electronic crane scale, also known as electronic hanging scale or hook scale, is an electronic weighing instrument used to measure the weight of an object. It obtains weight data by hanging the object and using sensors and other components, and displays the data in digital form.
Features
1.Convenient and fast: weighing can be done directly in a hanging state, eliminating the trouble of carrying and placing.
2.High precision: can meet the weighing requirements of different industries, and the precision is adjustable.
3.Wide application range: widely used in logistics, warehousing, factories, docks and other fields.
4.Multiple functions: such as automatic accumulation, peeling, long-distance peeling, value retention, etc., convenient to use and manage.
Technical Data
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | H(mm) | Weight(kg) |
| OCS-ZX-1/2 | 95 | 260 | 33 | 195 | 135 | 430 | 10.5 |
| OCS-ZX-3 | 95 | 260 | 40 | 195 | 135 | 455 | 11.5 |
| OCS-ZX-5 | 120 | 325 | 50 | 240 | 165 | 535 | 17.5 |
| OCS-ZX-10 | 124 | 325 | 60 | 240 | 165 | 660 | 27.5 |
| OCS-ZX-15 | 225 | 345 | 70 | 240 | 165 | 855 | 49 |
| OCS-ZX-20 | 225 | 345 | 85 | 240 | 165 | 920 | 56 |
| Model | maximum weighing capacity (kg) | minimum weighing capacity (kg) | division value (kg) |
| OCS-ZX-2 | 2000 | 10 | 0.5 |
| OCS-ZX-3 | 3000 | 20 | 1 |
| OCS-ZX-5 | 5000 | 20 | 1 |
| OCS-ZX-10 | 10000 | 40 | 2 |
| OCS-ZX-15 | 15000 | 40 | 2 |
| OCS-ZX-20 | 20000 | 100 | 5 |
Applications
Crane electronic scales are widely used in coal mines, ports, constructions, and railway transportation to control cargo loading.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
