Description

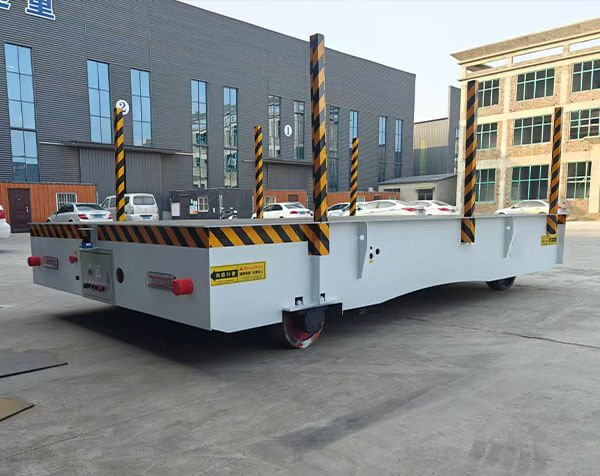

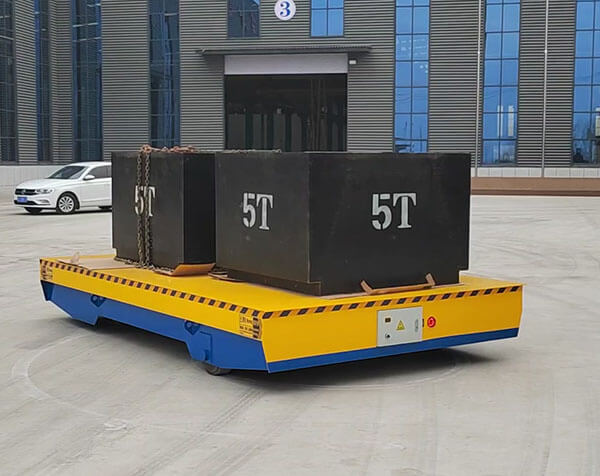

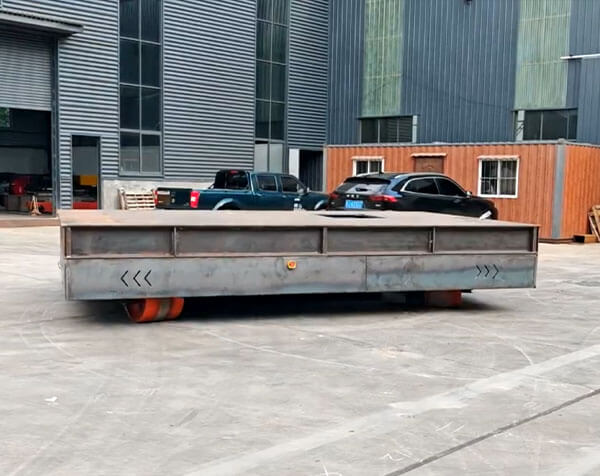

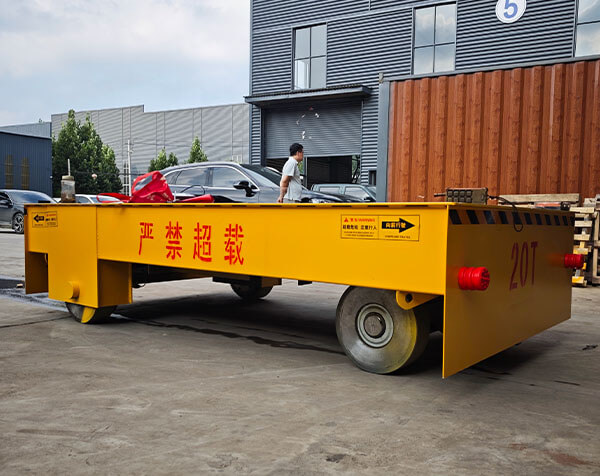

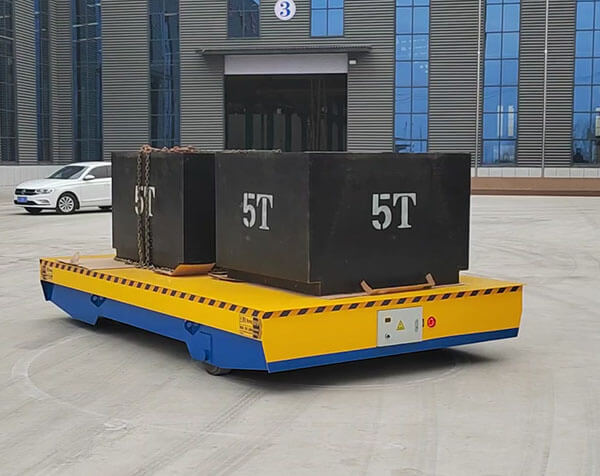

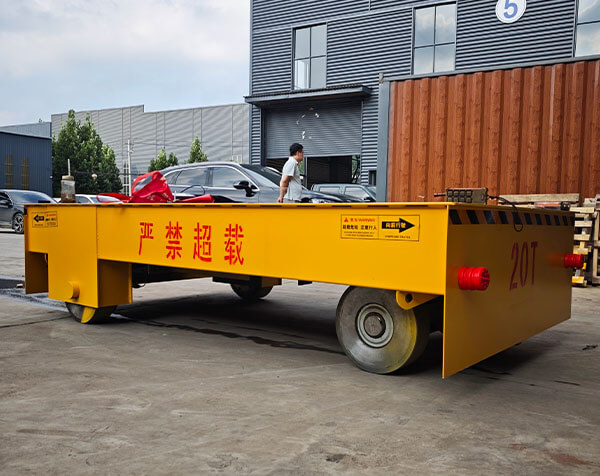

The 360° rotating trackless flatcar is a new type of material handling equipment. It can move and turn without the need for laid tracks, offering highly flexible and independent motion capabilities. Utilizing omnidirectional drive technology, each wheel is individually controlled by a separate motor for precise movement. It can move freely in all directions without altering its body posture, fully meeting customer needs. Furthermore, the use of batteries makes it more energy-efficient and environmentally friendly. The omnidirectional car can also autonomously design the shortest point-to-point transport route, significantly improving production and loading/unloading efficiency. Simultaneously, it is equipped with automatic obstacle avoidance and an emergency stop button to prevent collisions from the outset, reducing the risk of equipment damage, cargo loss, and personnel injury.
Features
1. Unlike rail-guided flatcars, it operates without the constraints of a track, allowing for free turning and movement.
2. It can adapt to varying road surfaces both inside and outside the factory. It can operate even on slightly undulating surfaces.
3. It supports various operating modes, including straight movement, lateral movement, turning, diagonal movement, and in-situ rotation.
4. It is simple to operate and easy to learn; only simple training is required to become proficient in using the flatcar.
5. It is battery-powered, clean, energy-efficient, and pollution-free.
6. It offers good safety, featuring an obstacle detection and automatic deceleration function that stops the flatcar upon detecting an obstacle.
7. It can achieve automated operation, supports path tracking, supports remote control, and can be configured with a host computer interface. A communication protocol is provided.
Technical Data
|
Electric control system |
Dedicated for series motor |
|
|
Control method |
Remote control |
|
|
Running speed |
(0-20)m/min customizable |
Stepless speed regulating appliance |
|
Charging protection |
Lock while charging |
Prohibited from running |
|
Frame body |
Steel plate and steel section splicing |
|
|
Loading table |
Q235 Steel plate |
|
|
Electric control box |
Side-opening electrical control cabinet, protection level IP54 |
1 set |
|
Electrical control components |
1 set |
|
|
Hydraulic power system |
Power Unit |
1 set |
|
Hydraulic steering cylinder |
Hydraulic cylinder |
1 piece |
|
Electric control system |
Adopt chopper speed control system |
|
|
Remote controller |
Use handle type wireless remote control, stable steering and speed regulation |
|
|
Vehicle bearings |
Adopt high precision wear-resistant bearings |
|
|
Vehicle seals |
High-strength NBR oil seal |
|
|
Running indicator light |
The vehicle is equipped with running indicator lights, turn indicator lights, and direction indicator lights. |
1 set |
|
Braking method |
Power-off brake |
|
|
Security System |
Wired controller connected to aviation socket for convenient and safe connection |
|
|
Electromagnetic brake system: activate emergency brake in emergency |
||
|
Charging lock: lock the vehicle body during charging and prohibit running |
||
|
Rotating warning light: The vehicle body is equipped with a rotating flashing |
||
|
The vehicle body is equipped with an emergency parking brake button |
Options And Components
Applications
360° rotating flatbed carts are used for material handling in workshops and can be used in confined spaces for flexible operation.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
