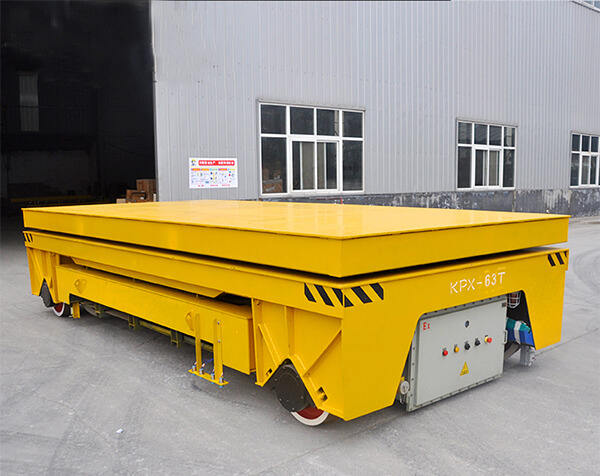

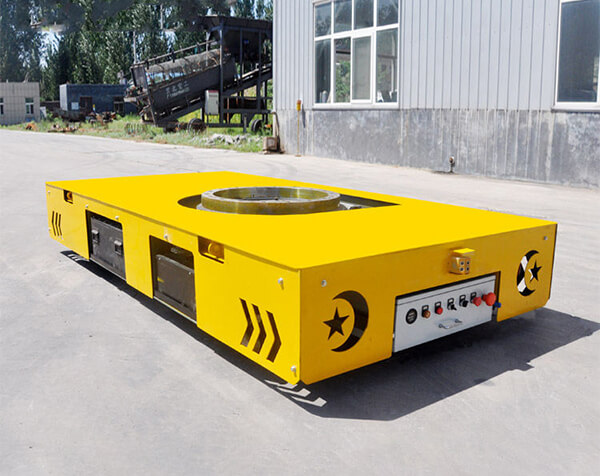

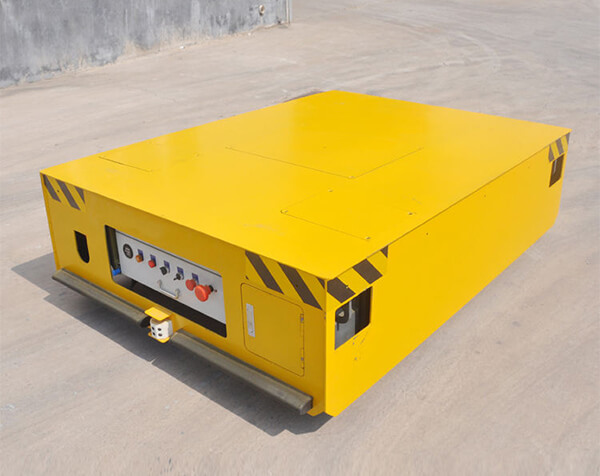

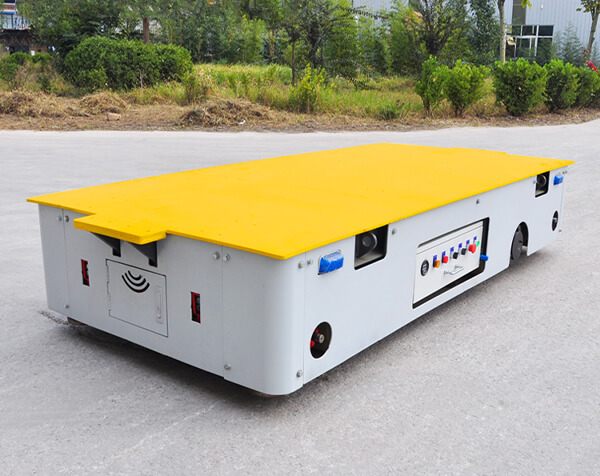

Electric Transfer Cart

  • Length: 2000-10000mm
  • Width: 1500-3000mm
  • Height: 450-1200mm
  • Wheel Diameter: Ф270-Ф600
Share this:
    Description

    Brick factories, kiln factories, refractory material factories, ceramic factories, roasting factories, and other electric kiln vehicles; Electric transportation vehicles for engineering, tunnels, sanitation, electric dump trucks, electric sanitation vehicles, etc. Electric transport vehicles and electric dump trucks are also used in flour mills, concentrators, foundries, chemical plants, furnaces, farms, and more

    Features
    1. Transfer carts, also known as cross flat cart, transfer trolley, electric flat cart, have advantages as simple structure, easy operation and maintenance, large load capacity and so on, with which these transfer carts are widely used in machine manufacturing and metallurgical factory matching up with lift cranes to transport heavy objects warehouse across.
    2. The rail transfer carts are suitable for various industries, steel mill and factory, paper roll plant, painting room, shipbuilding, new factory building project, machine processing line, heavy industry, airport and so on to transfer or handling material and equipment from one place to another, from warehouse to workshop.
    Technical Data

    Model

    BWP-2T

    BWP-10T

    BWP-20T

    BWP-30T

    BWP-50T

    BWP-63T

    BWP-150T

    Rated load (T)

    2

    10

    20

    30

    50

    63

    150

    Table size

    length(L)

    2000

    3600

    4000

    4500

    5500

    5600

    10000

    Width(W)

    1500

    2000

    2200

    2200

    2500

    2500

    3000

    Height(H)

    450

    500

    550

    600

    650

    700

    1200

    Wheel Base(mm)

    1200

    2600

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge(mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    Wheel Diameter(mm)

    Ф270

    Ф300

    Ф350

    Ф400

    Ф500

    Ф600

    Ф600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance(mm)

    50

    50

    50

    50

    50

    75

    75

    Running speed(min)

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    0-18

    Motor Power (Kw)

    1

    1.6

    2.2

    3.5

    5

    6.3

    15

    Battery Capacity(Ah)

    180

    160

    180

    250

    330

    400

    600

    Battery Voltage(V)

    24

    48

    48

    48

    48

    48

    72

    Max Wheel Load(KN)

    14.4

    42.6

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight(t)

    2.8

    4.2

    5.9

    6.8

    8

    10.8

    26.8

    Remark

    The technical parameter of the material handling trackless transfer car only can be make reference above. All can be customized manufacturing as per your true demand. please contact us if any doubt. Our professional engineer will help you solve the transfer problems in any time.

    Options And Components
    Crane wheel set
    The wheels are special wheels for cranes, the wheels are ZG55, the overall quenching, the hardness of the wheel tread and the inner side of the rim is HB320-380, and the depth is 20mm; the wheel axle is made of No. 45 steel with quenching and tempering heat treatment, the bearing seat is ZG45, and the bearing is a radial roller bearing. The axial automatic micro-alignment of the bearings can eliminate and overcome the elastic deformation of the flat car under no-load and full-load conditions and the deviation of the lateral parallelism of the track, ensuring the balance of the flat car running on the track and improving the service life. After the wheels are assembled, they can rotate flexibly.
    Applications

    Electric transfer car, also known as electric flat car, level car, trolley, span car, electric rail car, floor crawler, etc., is a kind of electric rail-based transportation vehicle in the factory. First of all, it is a rail-type transportation vehicle. Tracks need to be laid on the ground, and the tracks are generally I-shaped contact rails; secondly, it is an electric drive vehicle, which runs automatically under the drive of a motor reducer; thirdly, it is a flatbed truck with a flat platform and no cover. Under special circumstances It can also be non-planar but without a car cover, and the car body has no steering wheel and only has forward and backward directions (even if it turns, it must turn on the track). This kind of vehicle has the characteristics of simple structure, easy use, large carrying capacity, not afraid of getting dirty or smashed, easy maintenance, long service life, etc. Because of its convenience, strength, economy, practicality, easy cleaning and many other advantages, it has become a popular choice in the interior and factory buildings of enterprises. It is the preferred means of transport for frequently transporting heavy goods between short distances and fixed points in the factory.

    Service
    Free Crane Solution
    1. Providing standardized and specification-compliant products.
    2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
    18-month Warranty
    1. All products come with an 18-month warranty period.
    2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
    Provide Crane Parts Replacement/upgrades
    1. We provide replacement for all types of crane parts and associated products, whether purchased from our company or not.
    Technical Support
    1. Our engineers and technical experts can provide professional advice on the selection, performance optimization, safety, and cost-effectiveness of crane equipment.
    2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
    Provide Installation Team
    1. Provide written installation materials and manuals, as well as offer remote video guidance.
    2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
    One-Stop Supplier
    1. We provide over 200 types of cranes and their related products, saving customers’ purchasing time.
