Description

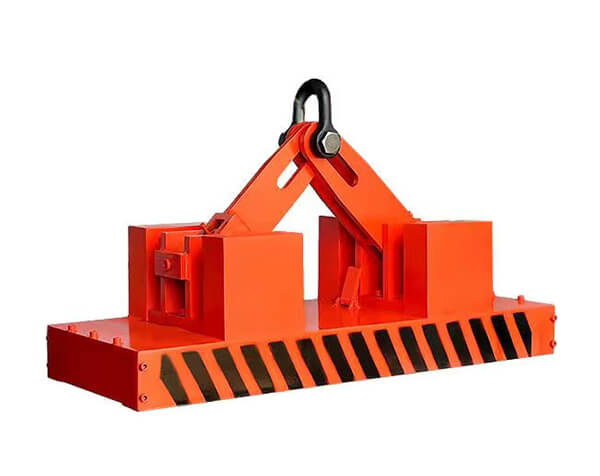

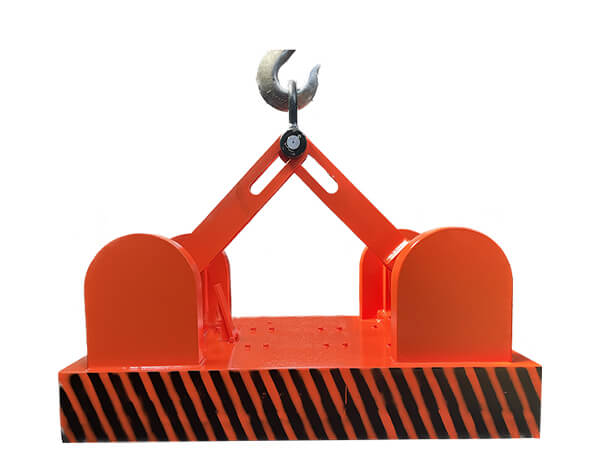

The fully automatic permanent magnet lifter requires no manual operation of the handle. It relies on the lifting and lowering control of the electric crane hook to attract and lift corresponding round steel bars and steel plates. It does not require electricity, is safe to use, and is widely used for lifting and handling steel materials, as well as for the installation and handling of flat mechanical parts and various molds.
Features
Permanent magnetic lifter are characterized by their small size, stronger holding force, no need for electricity, almost zero residual magnetism, and high safety factor.
1. Pure machinery does not need to be connected to electricity, saving labor and electricity costs.
2. Core magnetic material is custom made high performance NdFeB strong demagnetization rate is 5 / 1000 / 3 years
Technical Data
Fully automatic permanent magnet lifter
|
Model |
Rated capacity (kg) |
Maximum pull-out force |
Length A(mm) |
Width B(mm) |
Base height H(mm) |
Net welght (kg) |
Gross welght (kg) |
|
HC-1T |
1000 |
3.5 times |
550 |
500 |
105 |
170 |
190 |
|
HC-2T |
2000 |
3.5 times |
650 |
560 |
115 |
265 |
280 |
|
HC-3T |
3000 |
3.5 times |
840 |
565 |
115 |
330 |
345 |
|
HC-5T |
5000 |
3.0 times |
1060 |
700 |
145 |
610 |
638 |
|
HC-10T |
10000 |
3.0 times |
1200 |
773 |
220 |
1266 |
1300 |
|
2T Extended version |
2000 |
3.5 times |
1100 |
400 |
140 |
305 |
320 |
|
3T Extended version |
3000 |
3.5 times |
1100 |
400 |
140 |
345 |
360 |
Applications

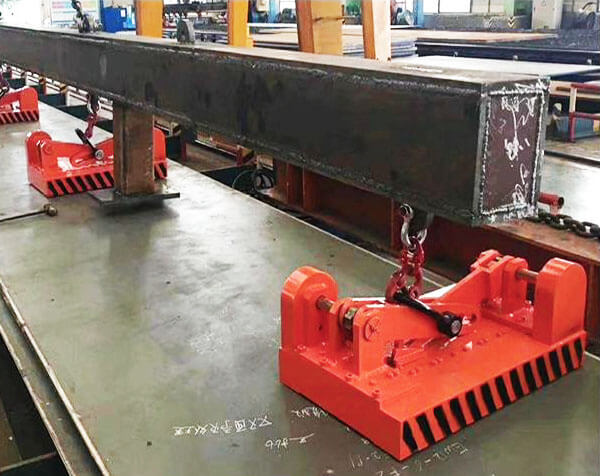

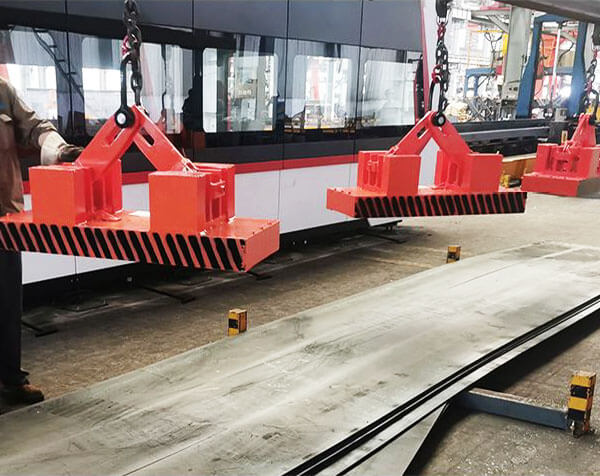

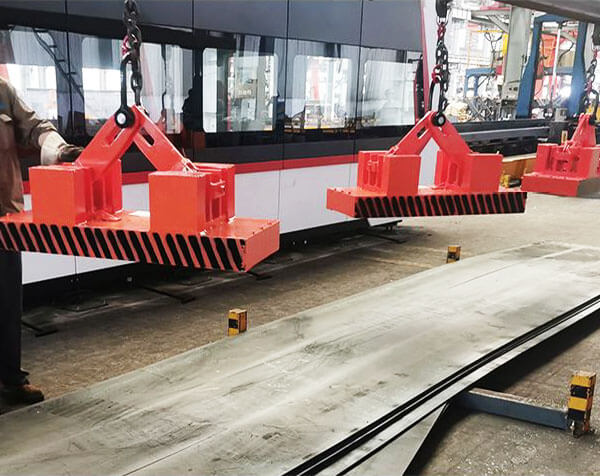

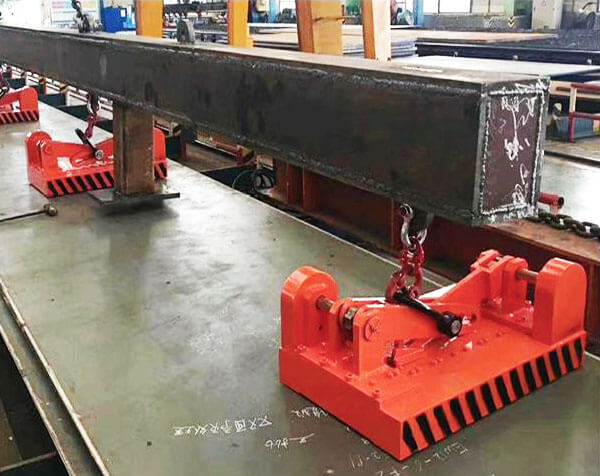

Applications: Permanent magnetic lifter are used to lift and move steel plates, punching dies, blocks, and other related materials or equipment used in machining processes; common application areas include the machining industry, shipbuilding industry, and automotive industry.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
